Do Ground Wires Need A Wire Nut | Yes!

You must ensure that the electrical outlets are grounded if the house is older. Homeowners are intrinsically protected from coming into touch with electric electricity by grounding, which is the cable that extends from outlets into the soil.

Whatever the approach, it’s critical that the ground circuit has an uninterrupted passage to the soil. At all times, ground cables must be securely linked. Additionally, connections need to be tight if conduit or sheath is utilized as a ground channel. A receptacle analyzer will inform you if the outlets are grounded when you’re unsure.

You’ll almost certainly come across wire connectors while performing practically any type of electrical wiring in the house. These connectors are used to create a variety of circuit wiring for light fittings, outlet receptacles, controls, and other equipment.

The most popular kind of wire connectors are tiny, spherical plastic caps, also known as wire nuts, that wrap over exposed wire ends to provide secure connections. Later, if you have to replace any equipment, you can loosen wire nut connections in order to do so.

Table of Contents

Wire Connectors Are the Best!

If you ever come across wires that are twisted and then covered in electrical tape, remove the tape and use wire nuts to connect the wires instead. Never substitute tape for wire nuts since it is insufficiently secure and prone to harm. Some folks prefer to use wire nuts that are taped together. This is perfectly OK, although it’s unlikely that wire nut producers will provide you with advice on how to do it.

Additionally, there are push-fit wire plugs that are simple to use and create very secure connections. However, they are much more pricey than wire nuts, as well as loosening them later on if you need to take a device out can be more difficult.

How Wire Nuts Work

Standard wire nuts feature ridges on their sides and thus are generally conical in form, making it easy for your fingers to hold them. Some species lack ridges altogether in favor of tiny side wings. A tiny square-cut spring that generates stress on the wires to keep them firmly is located within the plastic cone.

The spring tightens around the wires as you twist the wire connection to a tighter fit. Push-in wire connections, weatherproof wire connectors (often filled with gel to keep out humidity), and butt-splice connectors are alternatives to traditional twist-type wire nuts.

Using Wire Nuts

Always abide by the package recommendations because they differ depending on the product. But this is how it usually works:

Using a wire stripper, remove between 1/2 and 3/4 of an inch of insulation from the ends of each wire. To avoid cutting into the wire’s copper, use the correct hole on the stripper.
Align the ends of the wires by holding them close together.
The right size wire nut should be placed over the wire tips, and it should be pushed into the cables while being turned clockwise. Screw till the nut is as close as it will go, and no bare wire is visible beneath the nut. If you believe the nut isn’t secure enough, you can give it one more quick twist with such a pair of linesman pliers.
To ensure the nut is holding each wire firmly, give it a slight twist. Loosen the nut and restart if a wire even slightly comes out.

Before installing the wire connection, some people, along with many electricians, like to screw the wires using lineman tweezers in a clockwise orientation. They believe it creates a more reliable connection and might perhaps keep the wires connected in circumstances when vibration would potentially work nut-free. The manufacturer’s instructions, which frequently do not call for pre-twisting the wires together, should always be followed.

A Helpful Hint

Remove the strand copper cable approximately 1/8 inch over the solid copper wire when attaching them. When you tighten the nut, the stranded wire has a tendency to coil around the solid wire, thus the additional length aids in creating a secure connection. Adjust the wires so that the insulating edges are even and that the tips of the piece of wire extend over the end of a solid wire prior to applying the wire nut.

Wire Nut Sizes

Various sizes, as well as colors, are available for wire connectors. The coloration designates the types, sizes, and quantities of wires that the nut may support. A nut that is either far big or too little for the amount and size of wires getting connected is the incorrect size. This indicates a weak link, which might be disastrous, either way (loose wires start fires).

A chart that specifies the nut coloring to match the wires you are connecting is included on the box for every wire nut. A gray nut, for instance, can be suitable for minimum allowable 22-gauge strand wiring as well as maximum 16-gauge solid wires depending on the manufacturer.

For a max of 3 16-gauge solid cables, the following size up (possibly a blue nut) may be appropriate for 2 different 22-gauge solid wires. Simply make sure you’re inside the limit for the colors you’re using. Overlap in the size chart is typical. Always refer to the charts on the box because colors differ depending on the manufacturer.

What Kind of Wire Nut is Needed for Ground Wires

There is no particular wire nut design for ground wires. The kind, gauge, and quantity of wires you’re joining influence the size of wire nuts. This means that the typical yellow wire nuts may be used with as few as two #16 wires, quite so many as 3 #12 wires or four #14 wires, and in a variety of different configurations.

Although the color has essentially become standardized, different manufacturers may vary somewhat, and when you purchase the wire nuts, there needs to be a capacity table as well.

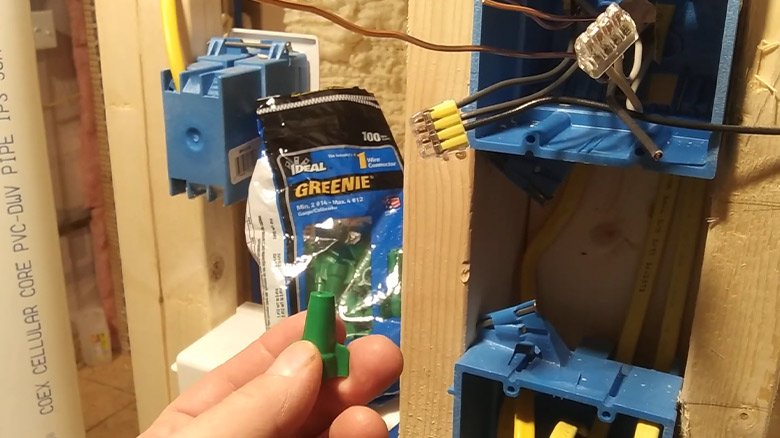

For the majority of lighting and utility circuits, we choose crimp connections (14 to 12-gauge cables). These are simple to install and allow us to leave a ground wire for each box “gang.” To hold it all together, crimp the cables after giving them a thorough twist. Because you may leave single ground wire lengthy enough to contact the device’s grounding screw, the green cable nuts work great for single gang boxes.

Any appropriately sized wire nuts or “wego” style slide-in connections are permitted by code. They only make the box’s wiring management more difficult. Although split bolts can be used, the bigger grounding/bonding cables must be kept running without them. Find out what is permitted and necessary in your jurisdiction by speaking with your local inspector.

Frequently Asked Questions

Do I Need To Attach Ground Wire?

Homeowners are intrinsically protected from coming into touch with electric electricity by grounding, which is the cable that extends from a socket into the soil. Whatever the approach, it’s critical that the ground circuit has an uninterrupted passage to the soil. At all times, ground cables must be tightly attached.

Do Grounds Have To Be Pigtailed?

The pigtail approach is thought to be the most secure in a setup with metal boxes. In this configuration, the metal box and outlet are both grounded. The grounding cables are joined at the splice and connected to the box and outlet via a pigtail. The top of the ground wire nut in the illustration contains a hole that facilitates pigtail installation.

Other techniques, when deployed properly, also function well. A ground clip, which attaches the wire to the box, is one such technique. There is frequently no ground wire when a home is wired using conduit or insulated cable. The conduit or metal sheathing is connected to the box by the cable connection, creating a channel for grounding.

Conclusion

When doing repairs when there are uncovered live wires, putting wire nuts is highly advised. It is risky to work on circuits with live wires. Wire nuts provide you the option to turn off the electricity on select active circuits alone, rather than the entire home or even a single room.

So now we know all there is to know about wire nuts and if you need to use them on ground wires. No matter the urgency, always be conscious of working with electricity and seek an expert when needed.
